OC Air Purifier 1000

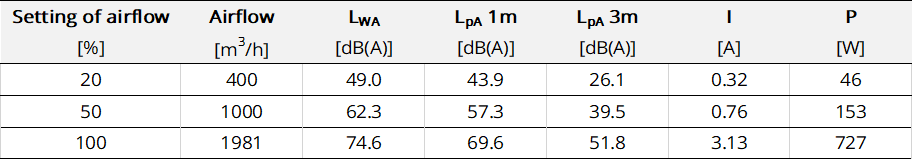

Technical Data

LwA - sound power level (measured acc. to EN ISO 3741, EN ISO 5135)

LpA 1m - sound pressure level at distance 1 m from the unit (measured acc. to EN ISO 3741, EN ISO 5135)

LpA 3m - sound pressure level at distance 3 m from the unit (measured acc. to EN ISO 3741, EN ISO 5135)

I - electrical current at 230 V AC

P - electrical power

Air Purifier Efficiency

The mobile HEPA filter unit efficiency can be described as a timeline of particle concentration inside a room. Higher airflow rates enable quicker removal of moving particles inside a room. Two studies were performed on a typical open space with two particle types: aerosol and dust, which both can carry unwanted microbes and infectious agents.

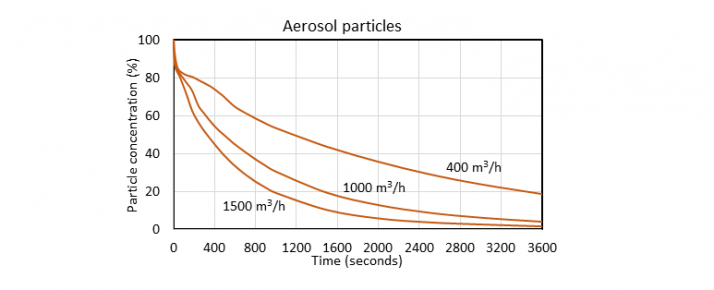

The study was performed in a room with 10x10 m of floor area and a ceiling height of 3 m (total volume 300 m3). The unit was placed in the center of the room. Initial aerosol particles distribution was homogeneous in the whole room, and monitored as 100% particle concentration. Three different airflow settings were used to monitor the timeline of particle concentration in the room.

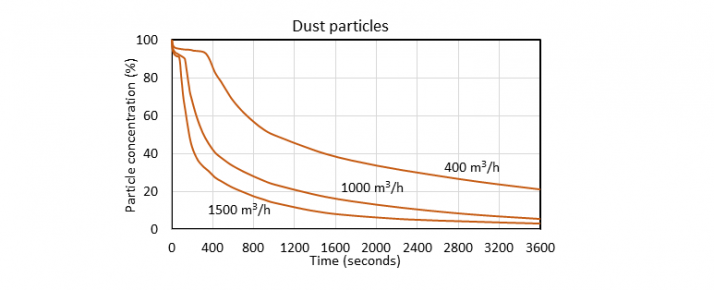

The study was perfomed in a room with 10x10 m of floor area and a ceiling height of 3 m (total volume 300 m3). The unit was placed in the center of the room. Initial dust particles were distributed on a horizontal surface inside the room (floor area and top surface of the unit), and monitored as 100% particle concentration. Three different airflow settings were used to monitor the timeline of particle concentration in the room.
